$2,495 MSRP

The EA100 Adapter is a digital autopilot interface that offers you improved safety and reliability with lower maintenance costs. The EA100 Adapter provides a digital-to-analog data conversion between the Evolution Flight Display EFD1000 and an aircraft’s attitude-based autopilot system, enabling the display’s Attitude Heading Reference System (AHRS) to provide accurate and reliable attitude information directly to your autopilot. The EA100 improves legacy autopilots by providing them with superior digital attitude information.

Improved safety

Whether coupled with a single Pro PFD or with a multi-display Evolution package, the EA100 leverages the Evolution Flight Display platform to offer safety enhancements over traditional mechanical or competing digital autopilot control systems. In Evolution 2000 or Evolution 2500 Package systems, the EA100 can be installed to receive attitude input from either the EFD1000 Multi-function Flight Display or the EFD1000 Pro Primary Flight Display. The redundant AHRS sensors in these multi-display configurations allow the pilot to independently monitor autopilot performance. Aspen is the only avionics manufacturer to offer this level of autopilot integration and reliability.

The attitude solution provided by the EA100 to the autopilot also incorporates sophisticated health monitoring algorithms and will immediately disengage the autopilot if an AHRS fault is detected. This represents a safety improvement over legacy designs where an autopilot would continue to respond to attitude commands from the gyro, even if the gyro had degraded or otherwise become inoperative.

Reduced maintenance costs

The EA100 is a cost-effective alternative to overhauling your legacy gyro. Extend the life of your King autopilot by utilizing the cutting-edge solid-state digital guidance input from your Evolution Flight Display. See the "Specifications" tab above for more information on replacement part approval.

Our current release schedule can be found on our Evolution Availability page

Read about the latest updates, releases, and announcements on our RSS-enabled Evolution Tracking page.

Features, specifications and images for this product may not be representative of the actual product.

EA100 Adapter

• Reliable, accurate digital attitude information feeds directly into your autopilot
• Built-in AHRS fault detection, immediate autopilot disconnect when fault is detected
• Install with single Pro PFD or with a multi-display Evolution Package*
• Redundant attitude source through MFD1000 when coupled with an Evolution 2000 or Evolution 2500 Package
• Improved safety, lower maintenance costs

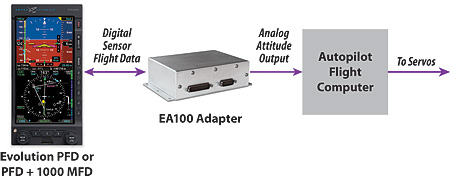

Ease of Installation

The EA100 Adapter easily integrates into your auto pilot system.

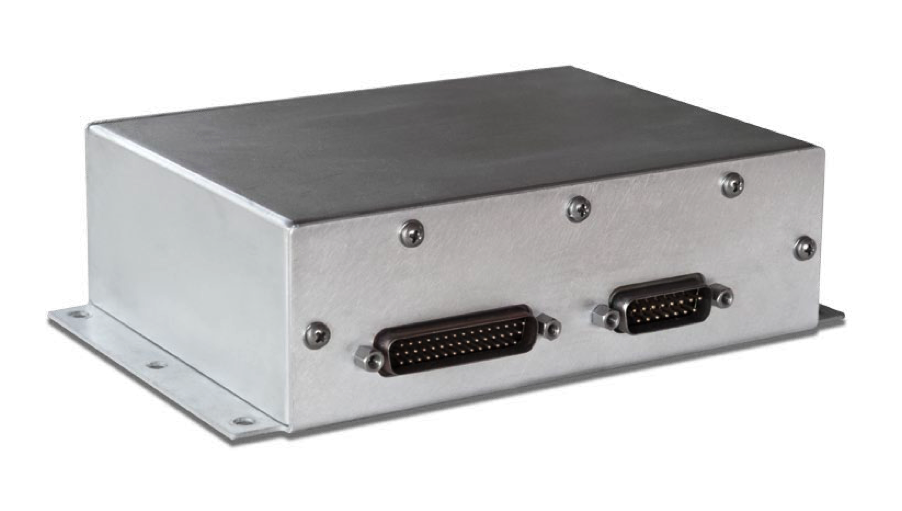

EA100 Adapter

Click on an image below for a larger image window.
