$13,060 MSRP

The EFD1000C3 Pro PFD meets the Level B software assurance levels required for FAR
Part 23 Class III aircraft. The increased safety, reliability and functionality of the Aspen system are now available to operators of piston and turbine aircraft between 6,000 and 12,500 pounds. The Evolution system is the most affordable and flexible digital solution for owners and operators looking to upgrade larger, often fleet-based, aircraft to a glass panel.

The EFD1000C3 Pro PFD gives you all the tools you need to fly safely and easily in instrument conditions, at a breakthrough price.

Built upon a robust, solid-state technology platform, the EFD1000C3 Pro PFD has features such as integrated GPS Steering, digital HSI with dual bearing pointers and moving map. Aspen is also offering Evolution packages that bundle Multi-function Flight Displays (MFDs) with the PFD. The EFD1000 MFD and 500 MFD both support hazard awareness features like weather, traffic and Stormscope, as well as Charts and Geo-referenced Airport Diagrams. The 1000 MFD also includes fully redundant ADAHRS sensors. In the event of PFD failure, a simple push of the REV button converts the 1000 MFD to a fully functioning PFD.

The Evolution system is your solution for increased safety, improved reliability and reduced pilot workload. A key benefit for owners and fleet operators is freedom from the recurring costs of overhauling aging mechanical gyros, reducing overall operating expenses.

Our current release schedule can be found here: Evolution Availability

Get the latest news via our RSS-enabled Evolution Tracking

Features, specifications and images for this product may not be representative of the actual product.

Features include:

• Software certified to Level B assurance levels for FAR Part 23 Class III aircraft operations
• Solid-state Attitude and Heading Reference System (AHRS)
• Backup battery and emergency GPS with 30 minutes of backup time
• GPS flight plan map views, choose from 360º or Arc view
• Full electronic Horizontal Situation Indicator (HSI) with dual bearing pointers
• Electronic Attitude Director Indicator (ADI) with airspeed and altitude tapes
• Approach mode with lateral and vertical deviation indicators and approach minimums alert
• Integral GPS Steering(1)
• Altitude alerter
• Dual GPS and dual VHF nav support
• Autopilot & flight director integration
• Display of real-time winds aloft, OAT, TAS, and ground speed(1)
• Moving map that displays GPS flight plan legs, curved flight paths(1), waypoints, navaids and airports
• Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display (140 pixels/inch)

Ease of Installation

The Evolution flight displays are an innovative, modular system that slide into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique system dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.

General Specifications:

EFD1000C3 Pro PFD Display Assembly

Operational Specifications:

I/O Specifications:

Certification Specifications:

FAA Technical Standard Orders: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software: RTCA DO-178B Level B

Environmental: RTCA DO-160E

Categories: See Environmental Qualification Sheet

Remote Sensor Module (RSM)

Analog Converter Unit (ACU)

Features and specifications subject to change without notice.

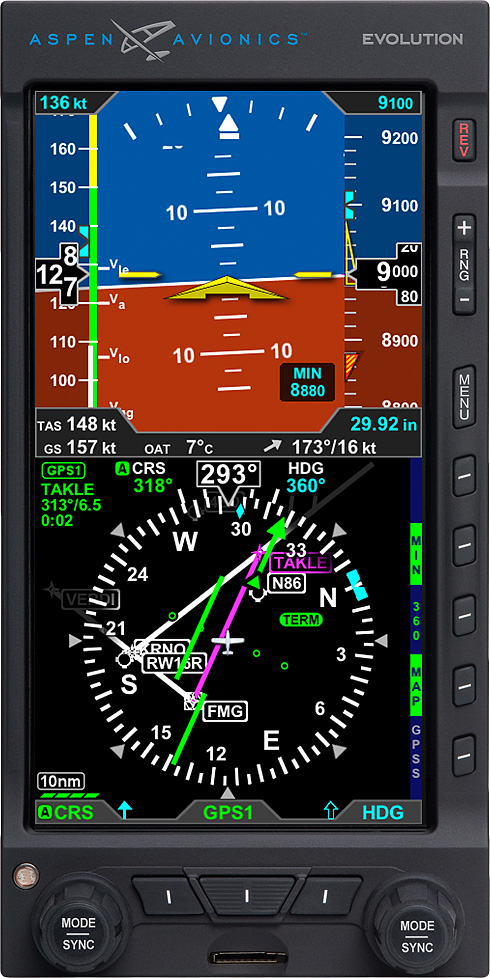

EFD1000C3 Pro PFD

Click on an image below for a larger image window.
