EFD1000 ATP
- Overview
- Features
- Installation
- Specifications
- Images
$12,995 MSRP
The EFD1000 ATP expands on the extensive features and capabilites of the EFD1000 Pro with both sectional-type moving maps and standard traffic, weather, and terrain.
Features, specifications and images for this product may not be representative of the actual product.
Check for updates and the release schedules for the Evolution Flight Display product line at www.aspenavionics.com/evolutiontracking.
EFD1000 ATP
All the features of the Pro plus:
- Integral ADAHRS, backup battery and emergency GPS
- Integral altitude alerter/pre-select
- GPS flight plan map views: 360º & Arc
- Full EHSI with dual bearing pointers
- Dual GPS, dual VHF nav support
- Autopilot & flight director integration
- Integral GPS Steering
- Base map with curved flight paths
- Sectional-style map
- Terrain, traffic, weather overlays
Ease of Installation
The Evolution flight displays are an innovative, patent pending modular system that slides into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting using existing instrument cutouts, plus the system can optionally be flush mounted if desired. Evolution EFD installation is so simple that installation time and cost are cut at least in half.
The modular EFD platform allows for easy expansion with additional capabilities, redundancy, and display area. The interactive modules mount side-by-side in one, two, and three tube configurations for supreme flexibility and upgradability.
Simple installation into existing panel openings.

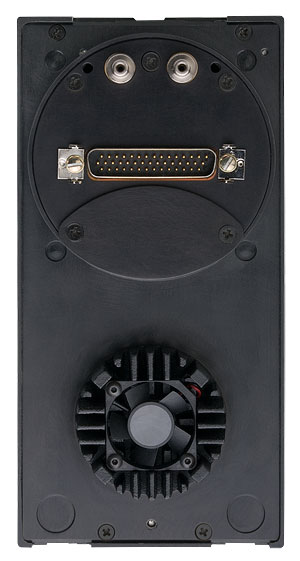

EFD1000 Display Assembly
General Specifications:
|
Part Number |
A-05-110-00 |
|
Width |
3.50 in. (Measured at Bezel) |
|
Height |
7.00 in. (Measured at Bezel) |
|
Can Depth |
4.15 in. (Rear of Bezel to Rear of Can) |
|
Overall Depth |
6.35 in. (Knob to Rear Pressure Fitting) |
|
Weight |
2.9 lbs (with Mounting Bracket) |
|
Display Type |
6.0” Diagonal TFT Active Matrix LCD (400x760) |
|
Display Colors |
32,768 |
|
Face |
Anti-Reflective Coated Glass |
|
Backlight |
High Intensity White LED |
|
Rotary Knobs |
Optical Encoder with Momentary Push |
|
Dimming |
Manual & Automatic (Front Bezel Mounted Sensor) |
Operational Specifications:
|
Operating Temp: |
-20°C to +55°C |
|
Storage Temp: |
-55°C to +85°C |
|
Max Un-Pressurized Operating |
35,000 |
|
Cooling |
Integral Fan |
|
Max Humidity |
95% at 50°C |
|
Input Voltage |
+8 to +32 Volts DC |
|
Max Current |
2.4 Amps @ 28 Vdc 4.8 Amps @ 14 Vdc |
I/O Specifications:
|
ARINC 429 Inputs |
5 Low Speed |
|
ARINC 429 Outputs |
1 Low Speed |
|
RS-232 Inputs |
5 |
|
RS-232 Outputs |
3 |
|
Pitot / Static |
Quick Connect |
Certification Specifications:
Technical Standard Order
TSO-C2d, TSO-C3d, TSO-C4c, TSO-C6d, TSO-C8d,
TSO-C10b, TSO-C106, TSO-C113
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
Categories
See Environmental Qualification Sheet
Remote Sensor Module (RSM)
|
Part Number |
A-05-111-00 |
|
Width |
2.65 in. |
|
Length |
4.40 in. |
|
Height |
1.00 in. |
|
Weight |
0.2 lbs |
|
Input Voltage |
Provided by PFD |
|
Max Current |
Included in PFD Current |
Analog Converter Unit (ACU)
|
Part Number |
A-05-112-00 |
|
Width |
5.75 in. (including mounting flange) |
|
Length |
4.30 in. (including connector) |
|
Height |
1.60 in. (including mounting flange) |
|
Weight |
0.8 lbs |
|
Input Voltage |
+10 to +32 Volts DC |
|
Max Current |
0.5 Amps @ 28 Vdc 1.0 Amps @ 14 Vdc |
|
Interfaces |
ARINC-429 and RS-232 |
Features and specifications subject to change without notice.
