EFD500 MFD
- Overview
- Features
- Installation
- Specifications
- Images
$4,995 MSRP

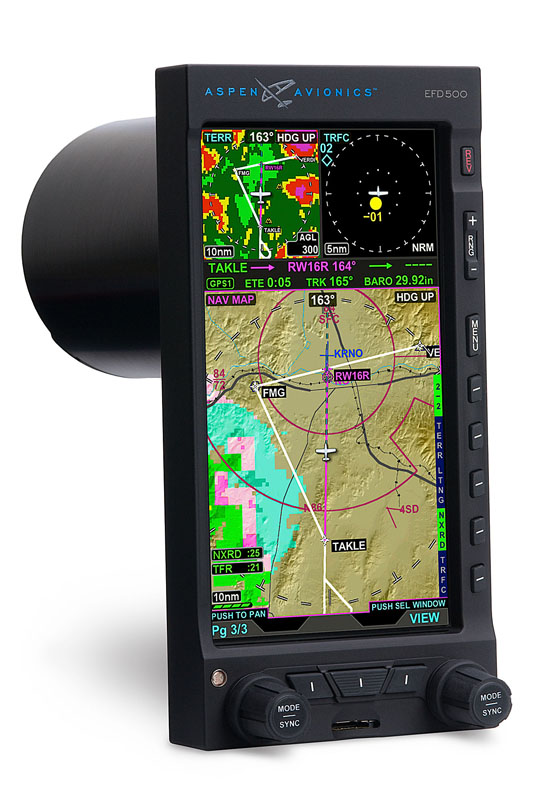

The EFD500 MFD provides the same great MFD features as the EFD1000 MFD at a lower price, by eliminating the ADAHRS sensor set (and the ability to serve as a PFD backup). It is ideal as a third tube to round out your glass cockpit six-pack replacement, and can be installed as a slave display to your EFD1000 MFD to make installation a snap.
Features, specifications and images for this product may not be representative of the actual product.
Check for updates and the release schedules for the Evolution Flight Display product line at www.aspenavionics.com/evolutiontracking.

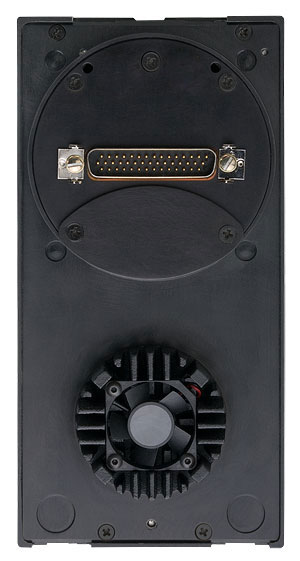

EFD500 MFD

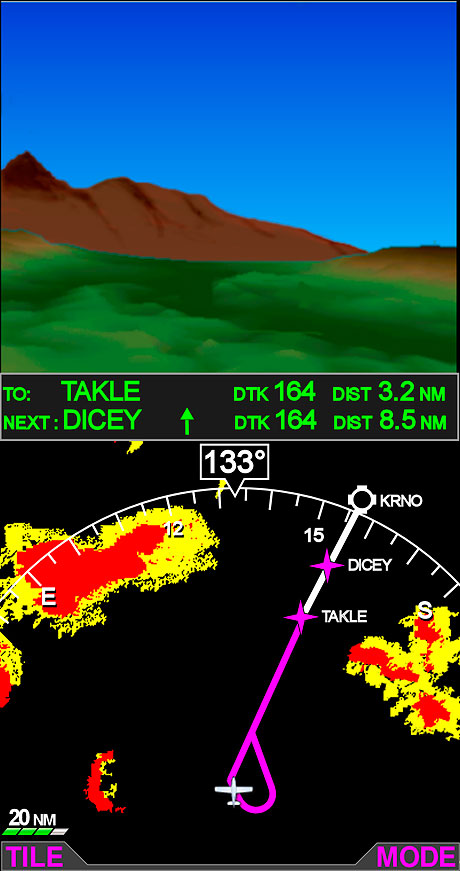

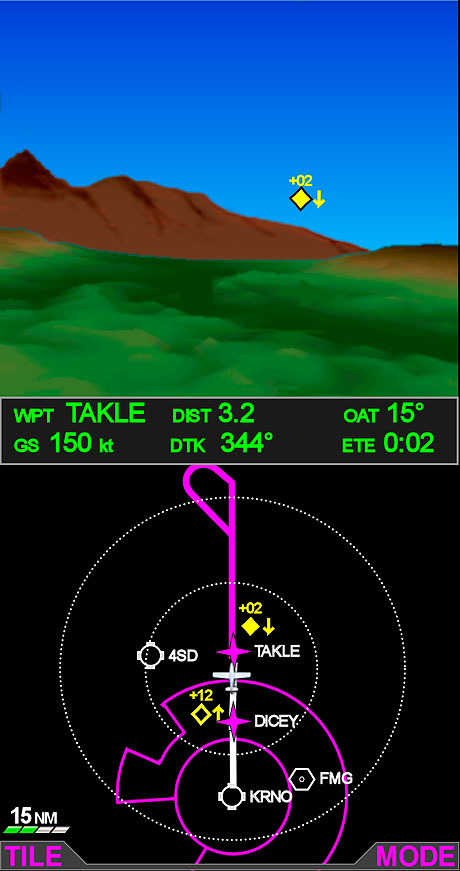

- GPS flight plan map views: 360º & Arc
- Base map with curved flight paths
- Sectional-style map
- Terrain, traffic, weather overlays
- Full-screen, 2-up, 3-up layouts
Ease of Installation
The Evolution flight displays are an innovative, patent pending modular system that slides into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting using existing instrument cutouts, plus the system can optionally be flush mounted if desired. Evolution EFD installation is so simple that installation time and cost are cut at least in half.
The modular EFD platform allows for easy expansion with additional capabilities, redundancy, and display area. The interactive modules mount side-by-side in one, two, and three tube configurations for supreme flexibility and upgradability.
Simple installation into existing panel openings.
EFD1000 Display Assembly
General Specifications:
|
Part Number |
A-05-110-00 |
|
Width |
3.50 in. (Measured at Bezel) |
|
Height |
7.00 in. (Measured at Bezel) |
|
Can Depth |
4.15 in. (Rear of Bezel to Rear of Can) |
|
Overall Depth |
6.35 in. (Knob to Rear Pressure Fitting) |
|
Weight |
2.9 lbs (with Mounting Bracket) |
|
Display Type |
6.0” Diagonal TFT Active Matrix LCD (400x760) |
|
Display Colors |
32,768 |
|
Face |
Anti-Reflective Coated Glass |
|
Backlight |
High Intensity White LED |
|
Rotary Knobs |
Optical Encoder with Momentary Push |
|
Dimming |
Manual & Automatic (Front Bezel Mounted Sensor) |
Operational Specifications:
|
Operating Temp: |
-20°C to +55°C |
|
Storage Temp: |
-55°C to +85°C |
|
Max Un-Pressurized Operating |
35,000 |
|
Cooling |
Integral Fan |
|
Max Humidity |
95% at 50°C |
|
Input Voltage |
+8 to +32 Volts DC |
|
Max Current |
2.4 Amps @ 28 Vdc 4.8 Amps @ 14 Vdc |
I/O Specifications:
|
ARINC 429 Inputs |
5 Low Speed |
|
ARINC 429 Outputs |
1 Low Speed |
|
RS-232 Inputs |
5 |
|
RS-232 Outputs |
3 |
|
Pitot / Static |
Quick Connect |
Certification Specifications:
Technical Standard Order
TSO-C2d, TSO-C3d, TSO-C4c, TSO-C6d, TSO-C8d,
TSO-C10b, TSO-C106, TSO-C113
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
Categories
See Environmental Qualification Sheet
Features and specifications subject to change without notice.
