Evolution Hazard Awareness (EHA)

presents an integrated, actionable display of potential flight hazards directly in front of the pilot. EHA is a standard, built-in feature of the Evolution Multi-Function Displays (MFDs) and the ATP Primary Flight Display (PFD), and is an option on the Pro PFD. Combining datalink weather, Stormscope® lightning, traffic and terrain on your primary navigation display and moving maps makes it easy to see and avoid hazards, even in IMC. EHA provides a better, more integrated display for compatible hazard sensors, while the Evolution Weather Receiver delivers breakthrough pricing for datalink weather solutions.

Evolution Hazard Awareness Features

Weather

Lightning Detection

• Control and display lightning data from WX500 Stormscope^®
• Cell and strike modes
• RS-232 interface

XM WX^® Satellite Weather

• Compatible with Evolution Weather Receiver, and Heads Up Technologies XMD-076/A receivers
• Supports XM WX Satellite Weather aviation products (display capabilities vary by model)
• Data from single weather receiver can be displayed on up to three Aspen EFD displays

Traffic

• Supports traffic systems with standard ARINC 735A outputs, including TIS-capable Mode S transponders
• Enhanced traffic system features and control available on MFD systems (features vary by manufacturer)
• Data from single traffic receiver can be displayed on up to three Aspen EFD displays

Terrain

• Terrain and obstacle awareness display and database built into MFDs and ATP PFD

Features and specifications are subject to change without notice.

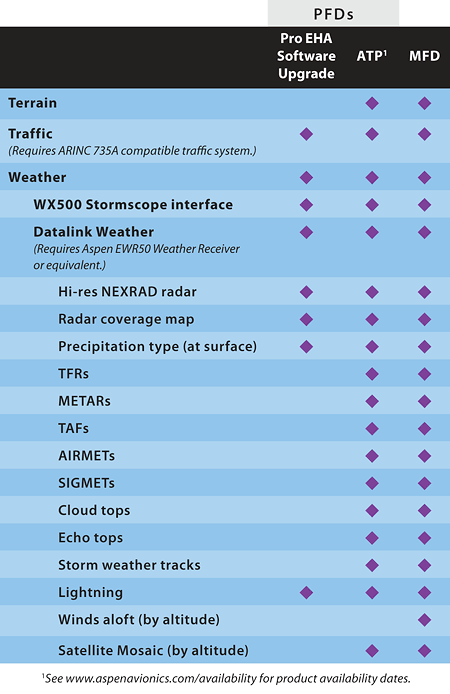

Evolution Hazard Awareness Feature Comparison

Evolution Hazard Awareness

Click on an image below for a larger image window.
